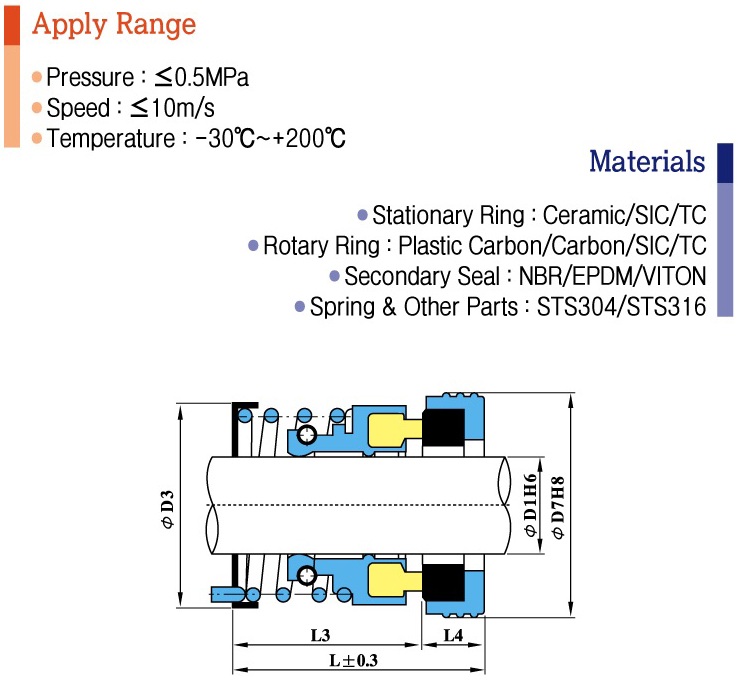

MODEL | D1 | D3 | D7 | L | L3 | L4 |
H156-8 | 8 | 17.0 | 18 | 18.0 | 13.5 | 4.5 |
H156-8A | 8 | 17.0 | 21 | 18.0 | 13.0 | 5.0 |
H156-9 | 9 | 18.5 | 21 | 22.0 | 16.0 | 6.0 |
H156-10 | 10 | 21.0 | 22 | 23.0 | 17.0 | 6.0 |
H156-11 | 11 | 21.0 | 24 | 23.0 | 16.5 | 6.5 |
H156-12 | 12 | 23.0 | 26 | 24.0 | 17.5 | 6.5 |
H156-13 | 13 | 23.5 | 26 | 24.0 | 17.5 | 6.5 |
H156-14 | 14 | 25.0 | 28 | 25.0 | 18.5 | 6.5 |
H156-15 | 15 | 25.0 | 28 | 25.0 | 18.5 | 6.5 |
H156-16 | 16 | 28.5 | 32 | 27.0 | 19.0 | 8.0 |
H156-17 | 17 | 28.5 | 32 | 27.0 | 19.0 | 8.0 |
H156-18 | 18 | 31.5 | 35 | 29.0 | 21.0 | 8.0 |
H156-19 | 19 | 31.5 | 35 | 29.0 | 21.0 | 8.0 |
H156-20 | 20 | 33.5 | 38 | 31.0 | 23.0 | 8.0 |
H156-22 | 22 | 34.5 | 40 | 32.0 | 24.0 | 8.0 |
H156-25 | 25 | 37.5 | 44 | 33.0 | 24.0 | 9.0 |
H156-28 | 28 | 40.5 | 46 | 34.0 | 25.0 | 9.0 |
H156-30 | 30 | 47.5 | 50 | 35.0 | 25.5 | 9.5 |
H156-32 | 32 | 47.5 | 54 | 37.0 | 27.5 | 9.5 |
H156-35 | 35 | 50.5 | 58 | 40.0 | 30.0 | 10.0 |
H156-38 | 38 | 53.5 | 60 | 42.0 | 32.0 | 10.0 |
H156-40 | 40 | 56.5 | 64 | 43.0 | 33.0 | 10.0 |
H156-45 | 45 | 61.5 | 66 | 45.0 | 35.0 | 10.0 |
H156-50 | 50 | 66.5 | 72 | 47.0 | 37.0 | 10.0 |
